ECU interfaces: ETK / FETK / XETK

Powerful ECU measuring and calibration access

The ETAS Ethernet-based ECU interfaces ETK, FETK, and XETK provide direct access to the measurement variables and control parameters of an ECU. Access is enabled via the parallel data and address bus, or via a serial microcontroller testing or debugging interface. Their extremely compact design allows to accommodate ETKs, FETKs, and XETKs inside the housings of production ECUs, ensuring utmost interface protection.

A close-up view of an ECU with ETAS components

Your benefits

Facilitates development

Powerful and microcontroller-independent interface between development ECU and PC-based tools.

High-speed

Ethernet-based data exchange with high bandwidth.

Flexible use

Easily adaptable to various microcontrollers.

Features

Flexible, small, and durable

Flexible, small, and durable

Easily adaptable to various microcontrollers; compact design; mechanically and electrically robust.

Numbers zero and two with two people discussing

Real-time data exchange

Time and angle-synchronized capture of hundreds of measured variables in up to 32 resolutions; support for up to 16 bypass resolutions.

Numbers zero and two with a woman sitting with a laptop on a chair

Parallel operations

Simultaneous access to the ECU for measurement, calibration, and rapid prototyping tools.

Dedicated power supply

Enables the preparation and initiation of cold-start testing independently of the ECU.

Parallel and serial ECU interface

The data exchange between ETK, FETK, XETK and microcontroller uses a mailbox as intermediate memory for measurements and real-time applications. When the microcontroller does not provide an external data and address bus, a microcontroller variant containing extended memory is often used for ECU development. In both test bench and in-vehicle testing, the interfaces facilitate access to the microcontroller over a long distance through a powerful test, debug, or trace interface.

move

Parallel ECU interface

Serial ECU interface

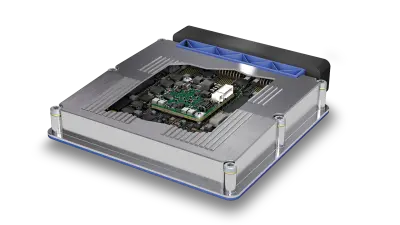

ETK – ECU Interface

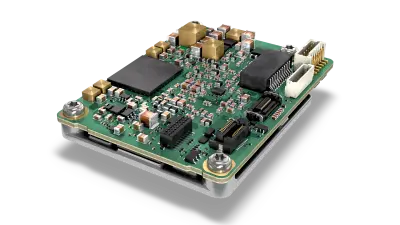

FETK – Fast ECU Interfaces

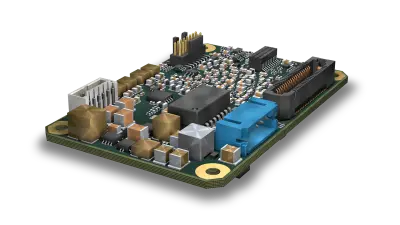

XETK – XCP-compliant ECU Interface

Extremely robust

ETK, FETK, and XETK interfaces are mechanically and electrically robust. They resist temperature extremes and vibrations at the ECU’s location in the vehicle.

Reducing computing overhead in ECUs

Picture of a group of people discussing how to reduce computing speed

Reducing computing overhead in ECUs

ETK, FETK, and XETK interfaces call for very little computing overhead on the part of the ECU. On engine ECUs, for example, large numbers of measured values can be acquired easily without impact on ECU overhead, even at high engine speeds that impact computing power. Using an ETK, FETK, or XETK development ECU, series-production software can be readily calibrated and verified with the production ECU. This helps minimize driver changes in the platform software.

Supported microcontrollers

ETAS provides a broad portfolio of ETKs, FETKs, and XETKs for commonly used microcontrollers for engine and transmission ECUs from NXP, Infineon, Renesas, Texas Instruments and STMicroelectronics. ETKs, FETKs, and XETKs are designed according to customer requirements, for example regarding memory sizes and mechanical integration with the ECU.

Technical data

Microcontroller type (manufacturer/family)	Interface to ETK/FETK/XETK	ETK/FETK/XETK type	Products
Microcontroller type (manufacturer/family) Infineon Traveo / Traveo II	Interface to ETK/FETK/XETK JTAG interface	ETK/FETK/XETK type Serial XETK	Products XETK-S16.0
Microcontroller type (manufacturer/family) *NXP MPC5500**	Interface to ETK/FETK/XETK Data and address bus	ETK/FETK/XETK type Parallel ETK	Products ETK‑11.0
Microcontroller type (manufacturer/family) NXP* MPC5600 ST SPC56x	Interface to ETK/FETK/XETK Data and address bus (standardized VertiCal interface)	ETK/FETK/XETK type Serial XETK	Products XETK-V2.0
Microcontroller type (manufacturer/family) NXP* MPC5700 ST SPC57x ST SPC58x	Interface to ETK/FETK/XETK JTAG interface	ETK/FETK/XETK type Serial ETK/FETK/XETK	Products ETK-S21.1 XETK-S21.0 XETK-S31.0
Microcontroller type (manufacturer/family) NXP S32	Interface to ETK/FETK/XETK JTAG interface	ETK/FETK/XETK type Serial XETK	Products XETK-S16.0 FETK-T5.0
Microcontroller type (manufacturer/family) Infineon Aurix	Interface to ETK/FETK/XETK DAP	ETK/FETK/XETK type Serial ETK/FETK/XETK	Products ETK‑S20.1 FETK‑S1.1 FETK‑T1.1 XETK‑S20.1 XETK‑S30.0 BR_XETK‑S3
Microcontroller type (manufacturer/family) Infineon TriCore	Interface to ETK/FETK/XETK Data and address bus	ETK/FETK/XETK type Parallel ETK / XETK	Products ETK‑T2.2
Microcontroller type (manufacturer/family)	Interface to ETK/FETK/XETK JTAG interface	ETK/FETK/XETK type Serial ETK/XETK	Products ETK‑S4.2 XETK-S4.2
Microcontroller type (manufacturer/family) Renesas RH 850	Interface to ETK/FETK/XETK JTAG	ETK/FETK/XETK type Serial ETK	Products ETK-S22 XETK-S22 FETK-T3.0
Microcontroller type (manufacturer/family) Renesas SH	Interface to ETK/FETK/XETK AUD II	ETK/FETK/XETK type Serial ETK	Products ETK‑S6.0
Microcontroller type (manufacturer/family) STM Stellar SR6	Interface to ETK/FETK/XETK SWD interface	ETK/FETK/XETK type Serial FETK/XETK	Products BR_XETK-S4 FETK-T4
Microcontroller type (manufacturer/family) Texas Instruments C2000	Interface to ETK/FETK/XETK JTAG interface	ETK/FETK/XETK type Serial XETK	Products XETK-S23
Microcontroller type (manufacturer/family) Various third-party microcontrollers	Interface to ETK/FETK/XETK Data and address bus	ETK/FETK/XETK type Parallel ETK	Products ETK‑11.0

* Former Freescale
