Decentral scalable measurement system for in-vehicle use cases

ES6xx product portfolio

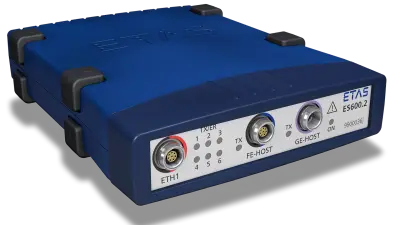

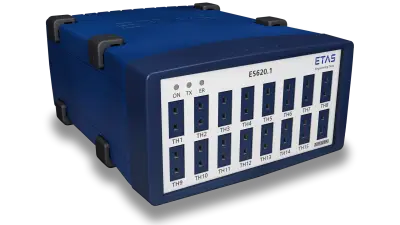

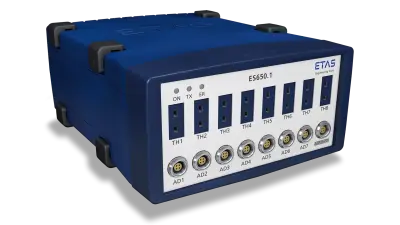

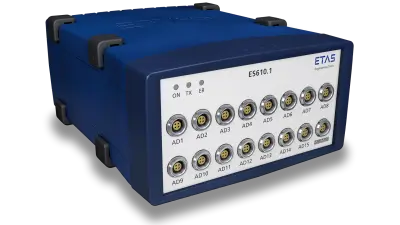

The ES600 network module is the heart of the system. Up to six ETAS compact hardware modules can be connected to it. The ES610 measures analog voltages via 16 channels that are electrically isolated from each other and from the supply voltage to achieve a consistently high common-mode rejection. The ES620 captures signals from temperature sensors via 16 channels that are electrically isolated from each other and from the supply voltage to achieve a consistently high common-mode rejection. The ES630/ES635 (single-channel) and ES631/ES636 (dual-channel) lambda modules support Bosch’s broadband oxygen sensors. The ES650 measures temperatures and analog input voltages each with eight channels.
