INCA V7 Service Packs

The INCA Service Packs support the efficient usage of INCA. They contain the most current enhancements and bug fixes for INCA and the recommended INCA Add-ons.

INCA V7.3 Service Pack 1

  • DoIP – Measurement and Calibration over UDS on Ethernet
  • Recorder – Add Calibration Info to support Big Data
  • AUTOSAR – End to End communication protection (E2E) for SOME/IP
  • AUTOSAR – V4.4 Support
  • XCP V1.4 – Support of Packed DAQ Lists (DAQ Packed Mode)
  • Ethernet & SOME/IP Monitoring on local network cards
  • More than one CAN-Monitoring device below a CAN/CAN-FD node possible
  • IP-Manager option to activate/deactivate automatic IP re-assignment
  • INCA-SIP & INCA-MIP – Support of MATLAB 2020A
  • Improvement of referenced models functionality in INCA-SIP
  • User interface improvements for INCA-SIP

Further details on the current INCA Service Pack release can be found in the related “What´s new presentation”

INCA V7.3 – Overview

With V7.3, INCA becomes a native 64-bit application and therefore, a 64-bit Windows operating system is required.

Advantages of INCA as a 64-bit application:

  • Memory: The PC memory is no longer limited. INCA can use all memory provided by a 64-bit PC/Windows operating system.
  • Performance:
    • Buffer storage of large amounts of data is possible.
      Therefore, writing data to the hard disk and later reloading them into RAM is rarely necessary. Example: Switching to other tabs in an experiment
    • Buffer for large amounts of measurement data.
      Example: When waiting for measurement data from ETAS hardware, data from the buffer can be written to a measurement file with better performance, especially over longer periods of time
  • Future-proof: All special 64-bit-OS commands can be used.
  • Robust: INCA runs more stable, because there are less "out of memory" situations

Further advantages of INCA V7.3:

  • Additional calibration metadata can be added to recorded data
  • Support for multiple Automotive Ethernet protocols on the same port
  • The option "download differences" can be used to accelerate the hardware reinitialization
  • The INCA V7.2 licenses can still be used for INCA V7.3

Further details on the current INCA release can be found in the related What's New presentation.

INCA V7.2 Service Pack 17

This service pack only contains bug fixes.

INCA V7.2 Service Pack 16

This service pack only contains bug fixes.

INCA V7.2 Service Pack 15

  • SOME/IP – Automotive Ethernet monitoring for AUTOSAR files
  • AUTOSAR – full cluster path display for ARXML file identification
  • Support of UDS on FlexRay-Flashen – ISO FlexRay TP in INCA-ProF
  • Slewing – several slew ranges can be defined
  • CDM – data exchange file is written separately for groups
  • COM-API – supporting test settings
  • EATB – connecting new software to INCA

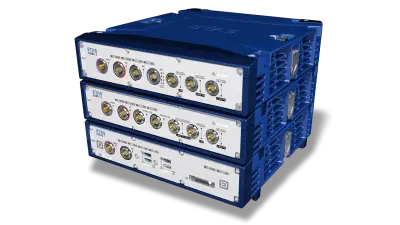

  • ES886 – more connections for Capturing and internal Tapping
  • EIP – supporting the default rasters
  • ETK – tools
  • INCA-SIP – user-configurable software hooks for designating and filtering variables
  • INCA-MIP and INCA-SIP – supporting MATLAB 2019B
  • Maintenance stopped for INCA on Windows® 7

INCA V7.2 Service Pack 14

  • XCP – AUTOSAR single pointer method via XCP protocol
  • AUTOSAR – File reparsing
  • Calibration data manager (CDM) – Multiple column view
  • Data type – Supporting 64-bit integer data types
  • XCP – Additional setting for the UDP source port in INCA
  • INCA-SIP – Remote control
  • INCA-SIP – Allow "Connect to INCA" while the model is running
  • Measurement recording in INCA EE – New user dialog in MDA V8

INCA V7.2 Service Pack 13

  • Ethernet Monitoring – Now with Capturing and Tapping also possible for AUTOSAR based PDU messages via Automotive Ethernet
  • XCP – The network protocol now supports IPv6
  • Optional confirmation dialog – No unintended switching between the working and reference page in INCA experiments
  • Communication protocols – INCA supports ASAP-V3.0 commands
  • VSD – Easy updating of the raster assignment for changed controller software
  • New option – Deleting outdated INCA log files is now possible
  • XCP V1.4 – Packed DAQ Lists (DAQ Packed Mode) for optimized controller or ECU interruptions and event measurements
  • Experiment – Showing several controllers
  • VN5610A – Device connection possible per Automotive Ethernet & BR_XETK
  • License Manager – Contingent Mode replaces former Grace Mode
  • Contingent Mode – Recommendations for ETAS INCA
  • INCA-SIP – Use of workspace variables in INCA experiments, support for data dictionaries, displaying measurement variables of referenced models, basic support for Stateflow® blocks

INCA V7.2 Service Pack 12

  • INCA – Supports up to 20 devices via XCP-on-Ethernet
  • INCA – Enhancements for writing XDA files
  • FETK – Mapping of serial numbers and alias names for ES891
  • VSD – Visualization of Predefined Raster
  • CDM – Supports COPY for Limited EMU RAM
  • ProF – Supports spaces in file paths and "none-8dot3" compliant path names for ProF flashing
  • Editors – Paste from MS Excel
  • Editors – Decimal numbering in the bit editor
  • AUTOSAR – Supports AUTOSAR V4.1/ V4.2/ V4.3.x for XCP-on-FlexRay
  • XCP V1.4 – PACKET_ALIGNMENT_x – Packet alignment for Ethernet
  • XCP V1.4 – ERR_TIMECORR_STATE_CHANGE – Additional error code to start/stop DAQ
  • START_STOP_SYNC – Enhancement of command
  • ASAP3 V3.0 – Extended commands for measurement and calibration
  • INCA-SIP – Real-time multipliers are supported

INCA V7.2 Service Pack 11

  • Upgrade of ETAS License Server from version 11.11.1 to 11.15.1
  • VSD – Filter for non-selected variables
  • VSD – Column sorting function
  • XETK – Display raster check details for Distab 13
  • FETK – Support of alias name
  • ES582/ES584 – Support of alias name
  • EIP – Support of arrays up to 64k (8 bytes)
  • EIP – Allow up to 15,000 measurements per raster in the ETARGET
  • CDM – Inline Compare
  • XCP V1.3 – Time correlation/synchronization
  • MCE – Visualization of mapped XETK/FETK
  • AUTOSAR – Container I-PDU for CAN/CAN-FD and FlexRay monitoring
  • INCA-MIP & INCA-SIP – Support of MATLAB 2018B
  • AUTOSAR – Support of AUTOSAR V3.2.x for FlexRay
  • SUPPORT SHELL – Display customer-specific support info in “Support” shell

INCA V7.2 Service Pack 10

  • Remote access to CUBE_4 via the COM API
  • CAN FD message editor – new feature
  • CAN/CAN FD/FlexRay display – support for AUTOSAR update bit
  • CAN FD and DoIP flashing – PROF UDS messages now up to 64 Kbyte
  • ETK – ability to select the ETK interface in offline mode
  • Combined editor – support for arrays
  • Polling mode – new configuration option
  • XCP support for a new AML V1.4/V1.5
  • INCA VOICE_RECORDER add-on enables spoken comments

INCA V7.2 Service Pack 9

  • ASAP2 - Download for deactivating "OFFLINE_DATA"
  • ASAP2 - Adoption of the "Symbol link” property in the MDF file
  • COM-API - Support for CUBOID
  • PRoF - Flashing up to 255 memory segments
  • ECU and bus interface module ES886 - INCA integration
  • CAN-FD support for VN module

INCA V7.2 Service Pack 8

Functions at a glance

  • Limited emulation RAM - Support of Renesas RH850 overlay RAM
  • 64-bit Integer support (limited to 32-bit value range)
  • COM-API – Support of bus monitoring
  • AUTOSAR – Support of multiplexed I-PDU monitoring for CAN/CAN FD
  • AUTOSAR – End-to-end communication protection for CAN/CAN FD monitoring
  • Show and edit alias names in hardware configuration
  • Check database for overlapping parameters
  • PRoF XCP flashing – New XCP_SET_TIMEOUT command
  • Search in "Add hardware device" dialog

INCA V7.2 Service Pack 7

Functions at a glance

  • Recorder – Use Variables to Build Output Path
  • UDS on FlexRay Flashing – Support Sending Functional Requests
  • ES882 – INCA Integration
  • INCA-EIP - Support of ES830 as E-Target Interface
  • INCA-MCE - Support of XCP on CAN FD via ES922

INCA V7.2 Service Pack 6

Functions at a glance

  • Create optimized exports for ES720/ES820 Drive Recorder
  • ProF – Full support of DoIP flashing
  • CAN FD monitoring – Container PDUs
  • CAN FD monitoring – Secure onboard communication (Secured I-PDU)
  • ASAP3 – Read data exchange files in Experiment Environment
  • Experiment – Display of progress bar while opening
  • INCA options – GET / SET via COM API or ASAP3
  • CDM - Variables in the output file name
  • Improved SFH functionality
  • Disable search for J2534 hardware
  • ES922 – INCA integration
  • ES584.1 – INCA integration
  • INCA-SIP – Support of mask parameters

INCA V7.2 Service Pack 5

Functions at a glance

  • Calibration in ETK dynamic emulation mode with different working and reference pages
  • Database: export of referenced data sets only
  • MATLAB®/Simulink® interface: support of new versions and functional improvements
  • INCA-TOUCH added to Service Pack Installer

INCA V7.2 Service Pack 4

Functions at a glance

  • Reuse of recorders in other experiments
  • IEEE1588-conform Time Synchronization with ES891/ES892 modules
  • Improved Time Synchronization with INCA
  • MATLAB®/Simulink® interface: Support of new versions and functional improvements

INCA V7.2 Service Pack 3

Functions at a glance

  • In Variable Selection Dialog for Filters the new LAB format is supported
  • Get & Set INCA Options and Get State via ASAP3
  • Support of Diagnostic over IP (DoIP) Flashing with ProF
  • Multi Raster – Support of XCP and CCP
  • Key Variable List is usable as Black List
  • ASAP2 Container transfers ECU description files as a structured ZIP Container
  • Service Pack Installer allows Downgrade

INCA V7.2 Service Pack 2

Functions at a glance

  • Key variable list
  • Exchange recorder configuration
  • Multi-raster – Measurements are updated even when some rasters do not send data
  • Resolution of IP address conflict of ETAS hardware
  • Import of FlexRay data from AUTOSAR R4.1/R4.2 description file
  • VN7610 support

INCA V7.2 Service Pack 1

Functions at a Glance

  • COM-API – Support of 32-bit and 64-bit clients
  • Variable Selection Dialog (VSD) – Add function list to experiment tree
  • INCA-MCE – Measurement and Calibration Embedded
    • FETK support
    • Variable Selection
  • XCP – Slave detection on Ethernet
  • XCP – ODT Optimization and measurement data consistency


  • Acquisition of tens of thousands of signals from the ECU at high cycle rates by means of the new FETK interface
  • Connection to several FETK ECUs plus CAN, CAN FD, LIN, or FlexRay vehicle busses in parallel by new ES89x ECU and Bus Interface Modules
  • Easy centrally controlled, automated INCA installations by using Windows Installer
  • Support of Windows 10

The flexible software tools in the ETAS INCA product family are designed for electronic control unit (ECU) calibration and diagnostics and to record ECU measurement data. As INCA was developed further, new functions were provided quarterly in the form of service packs from version 7.1 on. All these functions are contained in INCA V7.2. In addition to the Microsoft Windows® Vista* and Windows® 7, 8, and 8.1 operating systems, the new version also supports Windows® 10.

* Support up to INCA V7.2 Service Pack 4

Recording large volumes of ECU data

Used in conjunction with the ETAS FETK-T interface for high-performance control units and the new ES891/ES892 interface modules, INCA V7.2 allows users to record data at high cycle rates. During measuring trips, more than 56,000 different variables can now be simultaneously captured and recorded from the ECU.

INCA V7.1 Service Pack 10

Functions at a Glance

  • Flash programming with ProF – Read or write binary data
  • CAN FD – Switching between ISO / non ISO mode
  • New XCP V1.3 features
  • XCP - Resume Mode / Fast Start with dynamic data acquisition (DAQ) lists
  • Support of new ES892 ECU and Bus Interface Module
  • Calculated Signals: New formulas for signal analysis in INCA and MDA
  • MDA: Additional filter options in the Variable Selection Dialog

INCA V7.1 Service Pack 9

Functions at a Glance

  • Measurement by polling mode
  • J1939 – Support of extended multiplexing
  • J1939 – Improvements on the messages editor
  • ASAP2 V1.7 transformer concept
  • ASAP2 V1.7 / CDF V2.1 – Model link
  • ES891 support

INCA V7.1 Service Pack 8

Functions at a Glance

  • ODX V2.2 support
  • LIN V2.2 and SAE-J2602 support
  • CAN-FD – Support of CAN message sending using any CAN-ID during flashing
  • New ASAP3 service enables clients to read tool setup information
  • Improved visualization of active labels in the Experiment Environment
  • J1939 monitoring – supports 250K baud and 500K baud
  • Support of GNSS measurement devices in INCA

INCA V7.1 Service Pack 7

Functions at a Glance

  • J1939 monitoring
  • CAN-FD monitoring
  • XCP on CAN-FD
  • UDS on CAN-FD
  • ASAP3 – better support of low-frequency CAN monitoring signals
  • Unambiguous correlation of axis name and signal curve for digital signals in the YT oscilloscope

INCA V7.1 Service Pack 6

Functions at a Glance

  • Improved readability of measurements presented in binary format
  • Easy one-step procedure for adding variables to INCA-MCE
  • Experiment view in the database manager includes INCA-MCE configuration
  • Support of Autosar description file V4.1, including CAN
  • Change font size in the new oscilloscope
  • IP Manager detects IP addresses out of range
  • Active tool support of "search for hardware"

INCA V7.1 Service Pack 5

Functions at a Glance

  • Multi-language support for service pack installer
  • Improved readability of measurements presented in binary format
  • Data compression and standard indexing of MDF files
  • CAN FD supported
  • XCP V1.2 on CAN FD and Ethernet
  • XCP – overruling transport parameters
  • S6 record type supported for S19 files
  • ES581.4 USB CAN Bus Interface supported
  • MATLAB® interface improvements
  • Improved Simulink® integration package

INCA V7.1 Service Pack 4

Functions at a Glance

  • Performance improvements for remote calibration
  • Calibration label boundaries checked during import/export of ECU projects
  • ES583 USB FlexRay Bus Interface supported
  • INCA-MCE: dynamic emulation RAM mode supported

INCA V7.1 Service Pack 3

Functions at a Glance

  • Reprogramming ECU flash memory using UDS on FlexRay
  • XCP V1.2 on CAN
  • Performance improvements for eCDM interface
  • QM-BASIC: handling and filtering process metadata / specific data for maturity level
  • Emulation RAM segments of older ETKs automatically released

INCA V7.1 Service Pack 2

Functions at a Glance

  • Windows 8 supported
  • New ASAP3 commands supported: EXTENDED GET/SET PARAMETER
  • Parameter comparison: new tolerant compare mode
  • Improved search for variables in experiment environment
  • Multi-client support for ES581.4 USB CAN Bus Interface
  • CAN messages sent through any CAN ID during reprogramming of ECU flash memory
  • New ProF scripting commands for bitwise comparison of variables

INCA V7.1 Service Pack 1

Functions at a Glance

  • Reprogramming ECU flash memory using XCP on Ethernet
  • Flash programming using XCP: configurable timeout for PROGRAM_CLEAR command
  • Optimized support for ECUs with limited emulation RAM
  • ODX-LINK: World-Wide Harmonized On-Board Diagnostics (WWH-OBD, ISO 27145) now supported

At a Glance

  • Provision for fast handling of large ECU projects
  • Exploitation of the full computing power of multi-core PCs
  • New, high-performance oscilloscope with extended display options
  • Comparing of calibration data concurrently with ongoing experiment
  • Graphical display of test track routes in the Measured Data Analyzer (MDA) based on GPS data
  • Simultaneous utilization of several rapid prototyping modules by INCA-EIP
  • Support of the ETAS compact hardware modules ES415 and ES930

ETAS INCA is the first choice worldwide for the majority of measurement and calibration tasks. The new version INCA V7.1 of the Integrated Measurement, ECU Calibration and Diagnostic Environment by ETAS makes quick work of day-to-day tasks – even with the most complex control systems.

INCA V7.1 comes with enhanced system performance; with INCA V7.1, even ECU projects featuring high amounts of measurements and calibration parameters can be quickly handled by the user. Large experiments open decidedly faster. Plus, opening and working with the variable selection dialog has been noticeably expedited.

When acquiring data, INCA V7.1 utilizes all available processor kernels of a multi-core PC. The display of the new INCA oscilloscope is handled by the PC’s graphics adapter, which unburdens the main processor. During recording it is possible to index measurement files, making opening and working with the respective data in the MDA quite a bit faster.

The numerous innovations and improvements of the new version 7.0 increase the efficiency and performance of the tools while also offering new possibilities for integrating tools and data in the development environment of the customer.

Standards and open interfaces

For the seamless integration into the development environment, INCA comes with a number of open interfaces. INCA V7.0 is compliant with the new specification for exchanging measurement data, ASAM MDF4, and with the latest versions of the ASAM standards MCD-2 MC (ECU description for measurement and calibration systems) and MCD-3 MC (test bench interface). INCA V7.0 is the only tool currently on the market which supports the parallel connection to automation and auto-optimization on the test bench according to the ASAM MCD-3 MC V2.2 specification.
